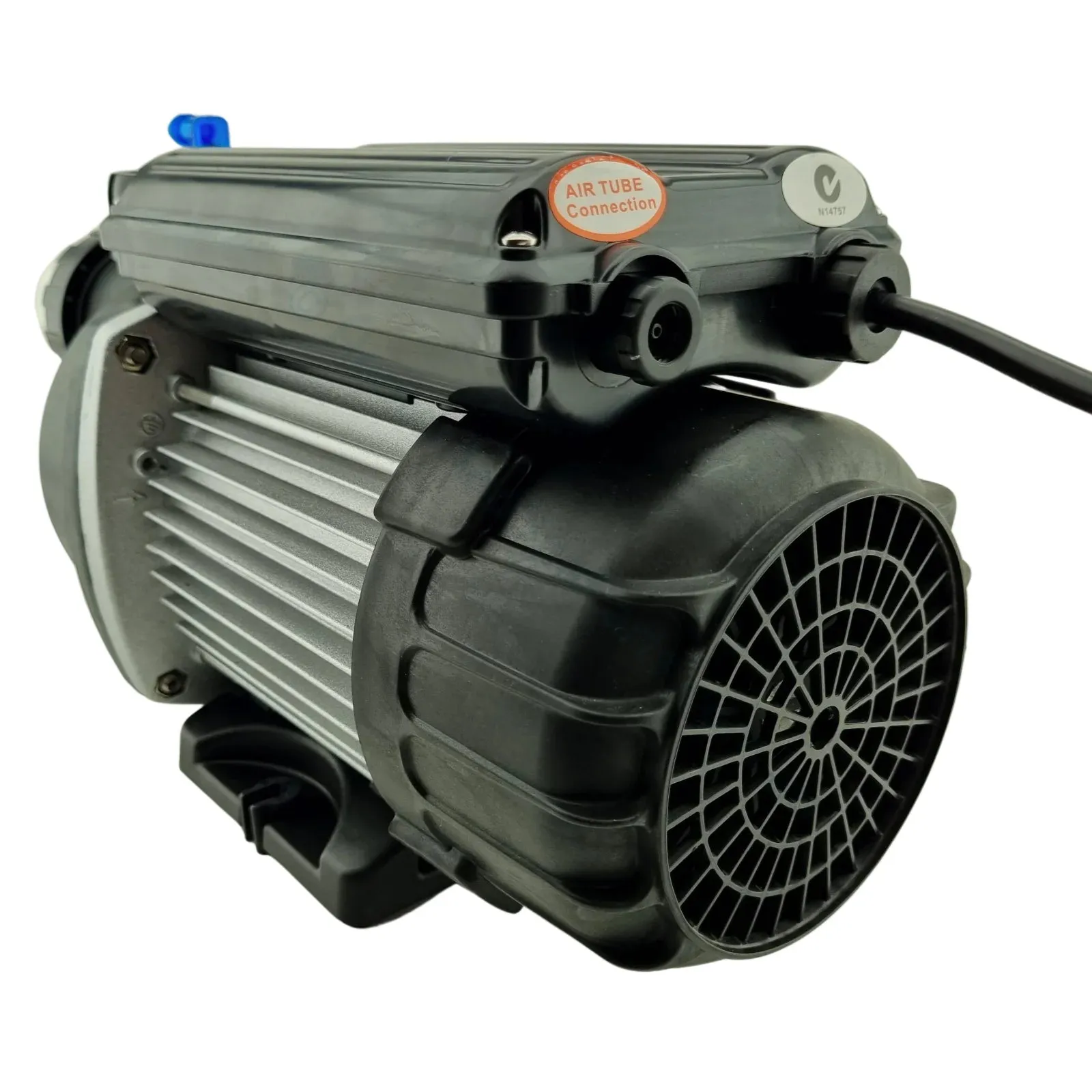

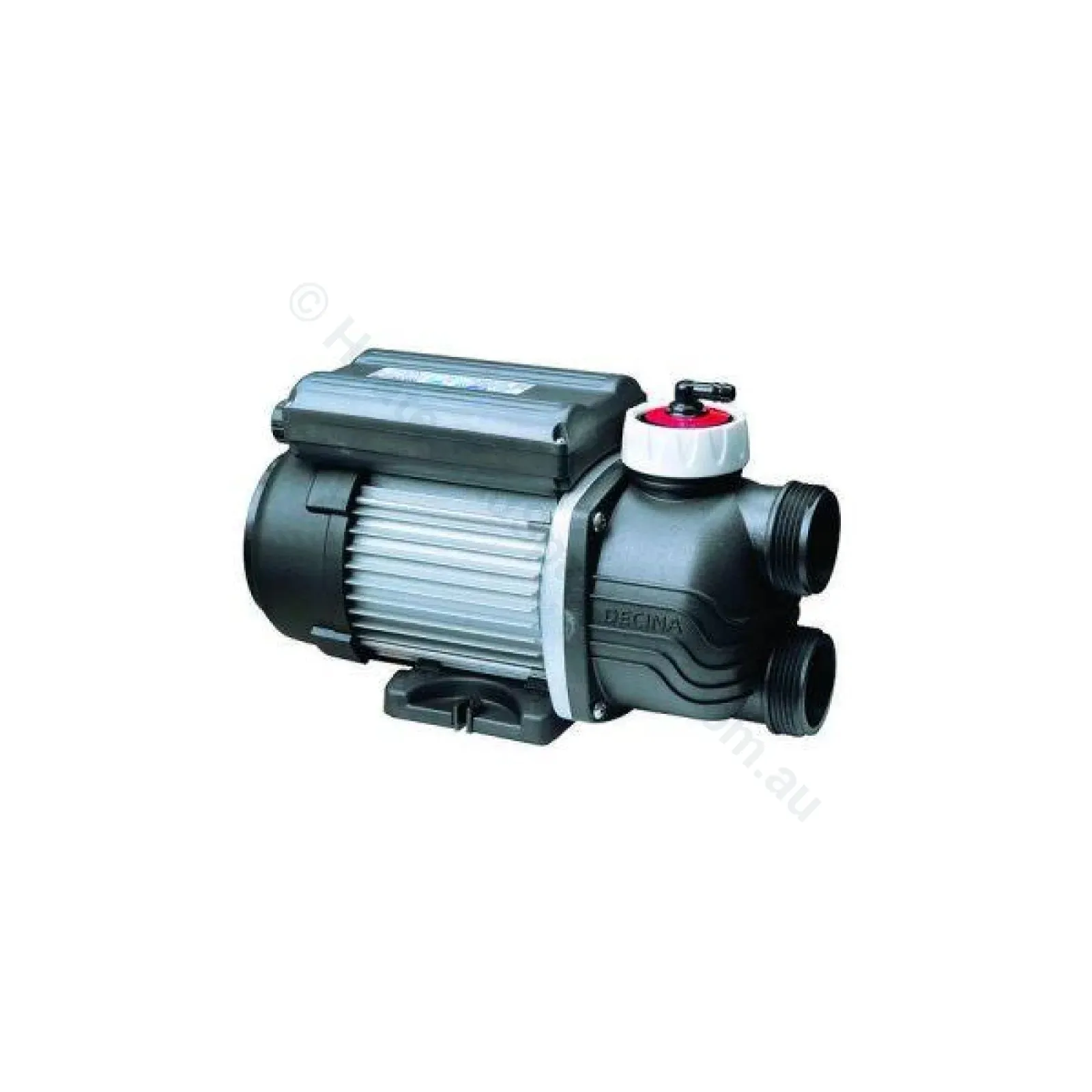

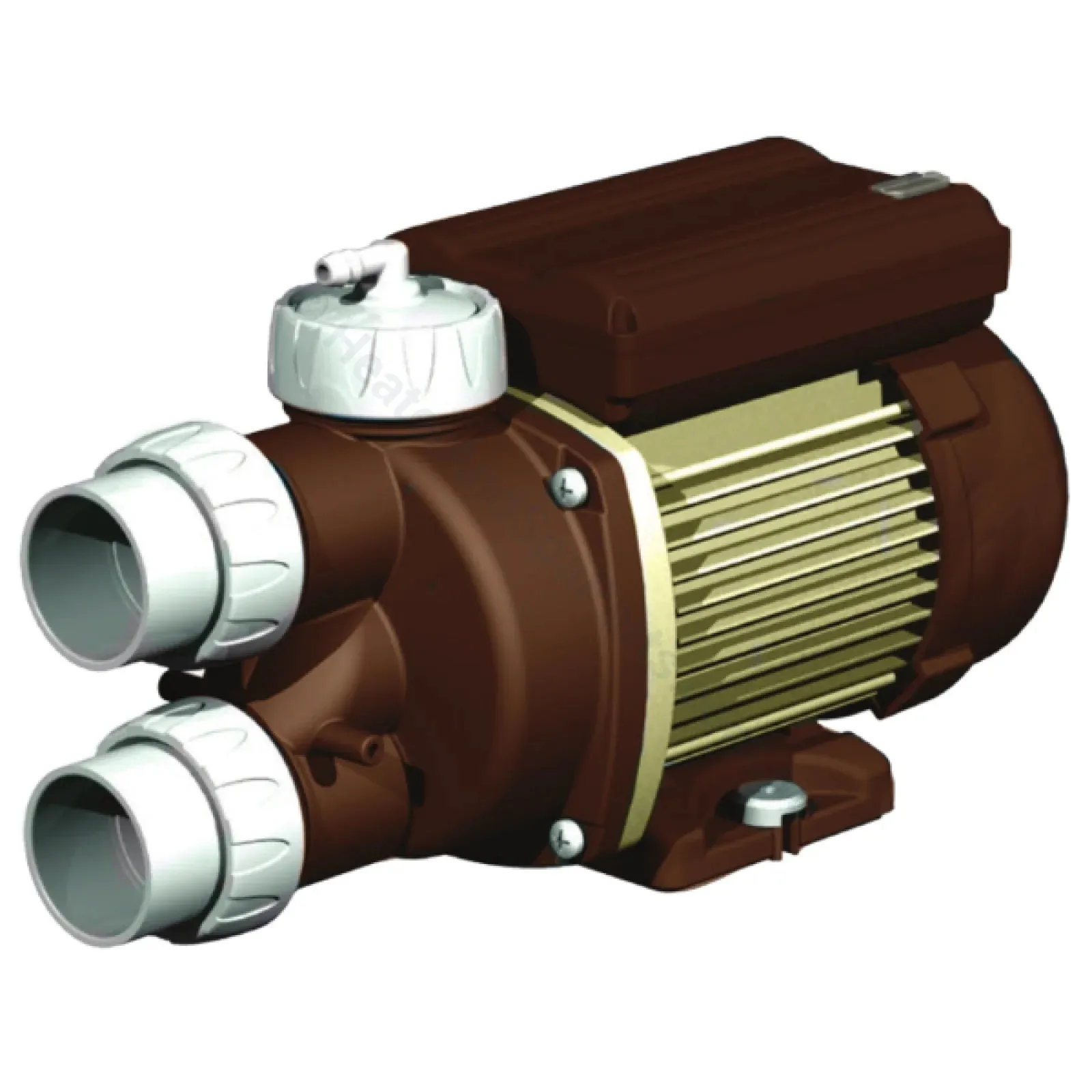

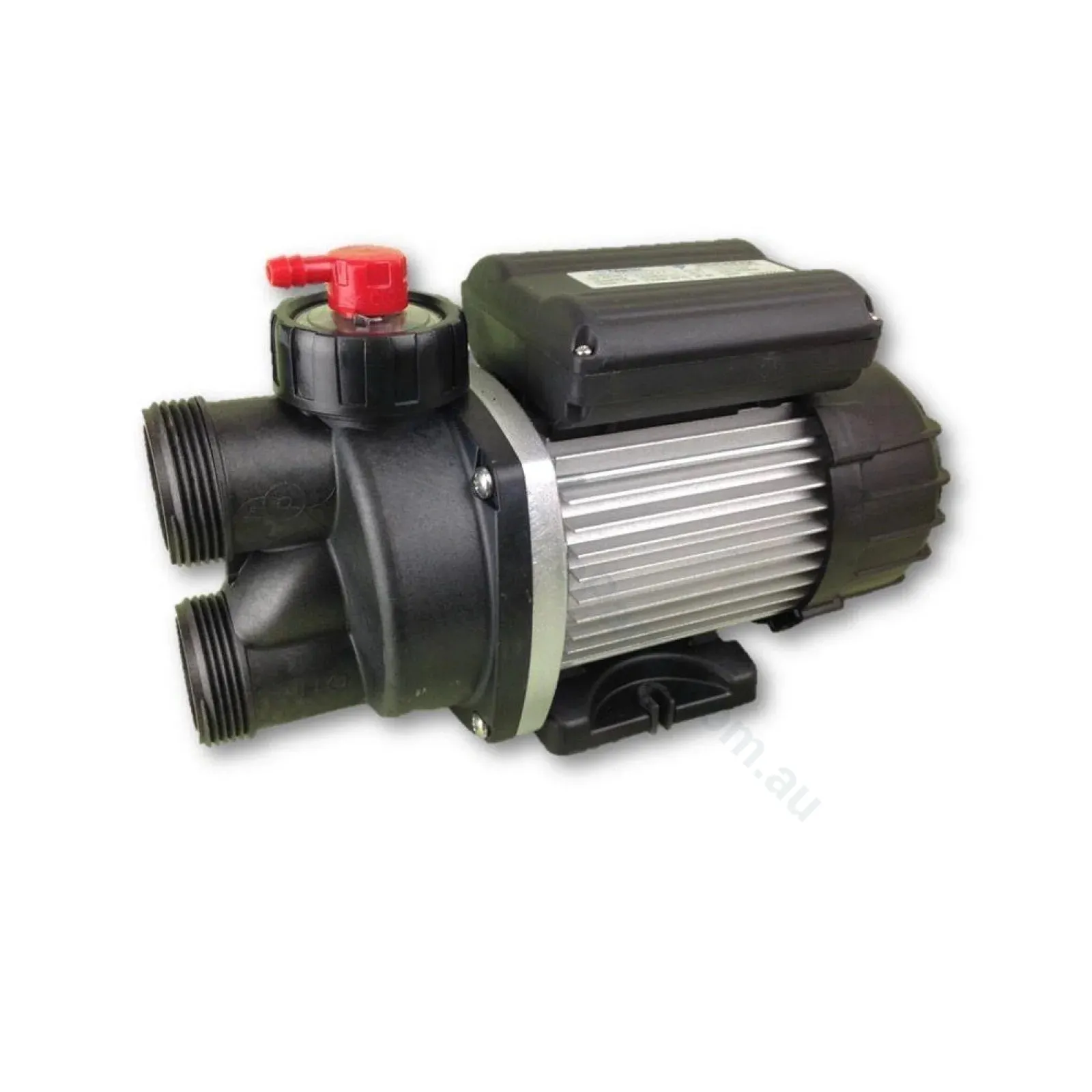

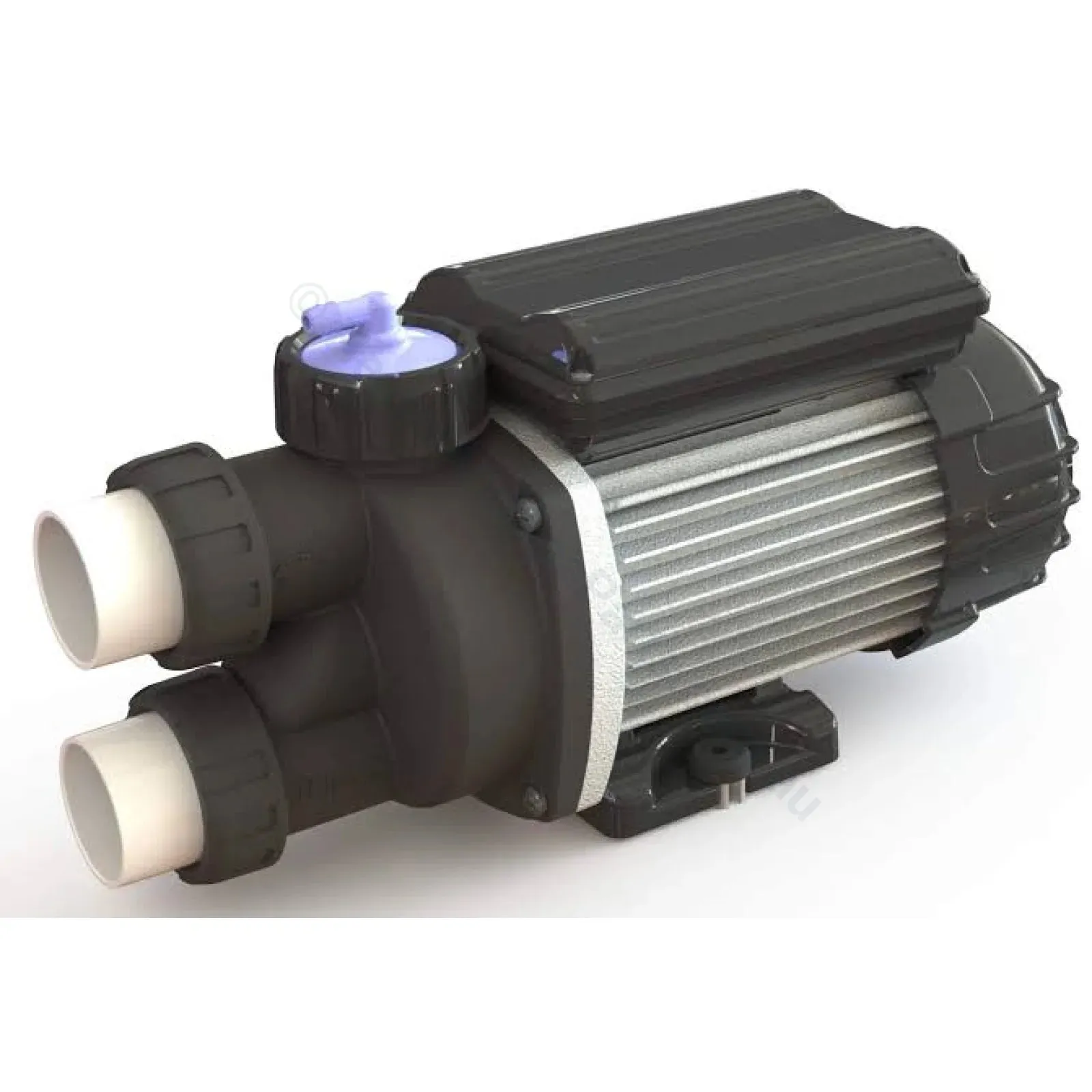

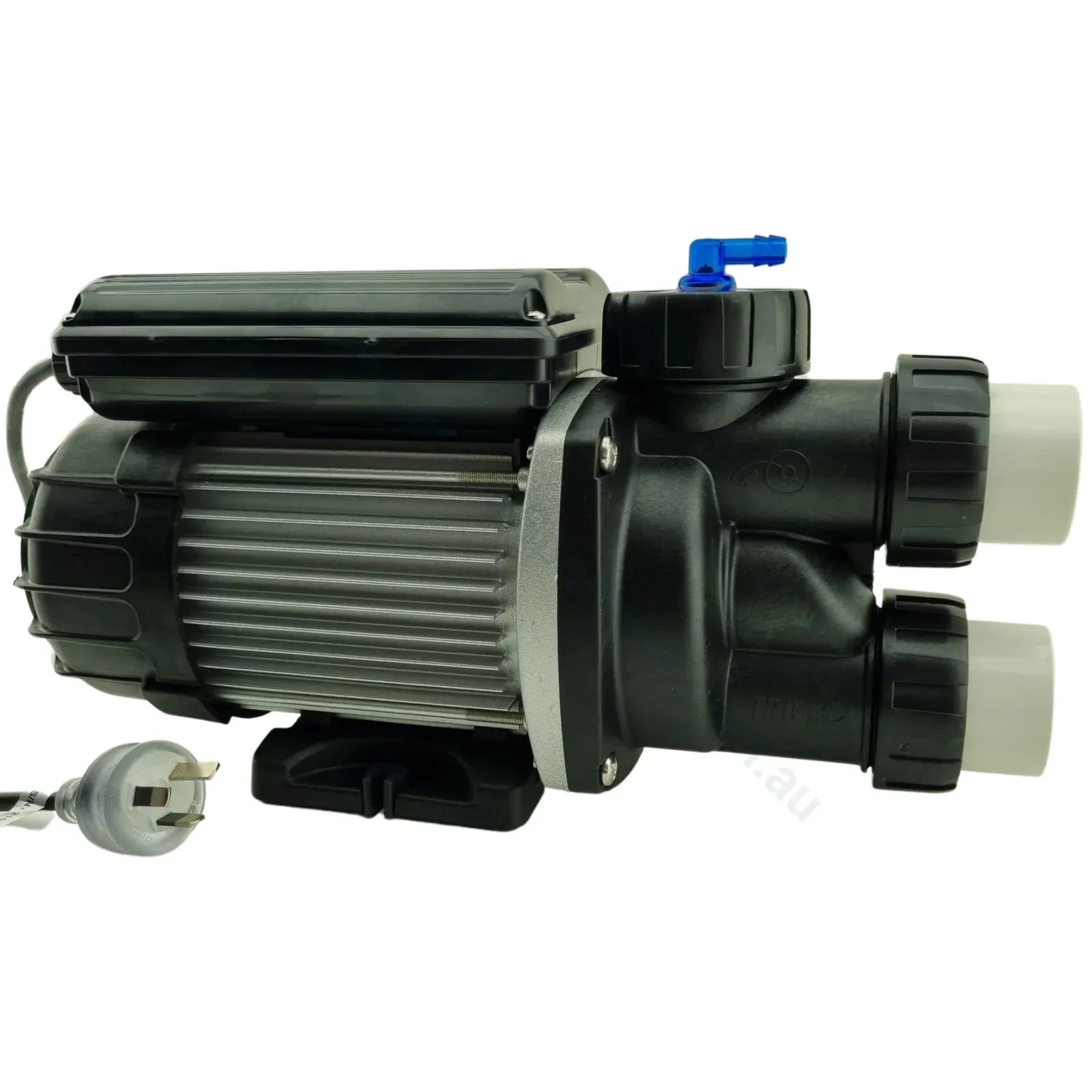

Universal Edgetec / Decina TriFlo 1.0HP Auto-Heat spa bath pumps. Air Switch operated. Motor heat is transferred to the water via the TriFlo's unique back plate.
For a pump with a heater element, use the .
Used on many spa baths, and is a great retrofit for any non-heat spa bath pump. Used by Monarch, Decina, Lanark, Round Bath Company, Microjet SpaBath, and many others.
Details / Models:
- Edgetec / Decina Auto-Heat 1.0hp
- E-6100 - TF075-AH-50 / TF075-AH-50-HF
- E-6200 - DC075-AH / DC075-AH-50-HF
- Also replaces the following obsolete models:
- E-6106: TF060-AH-50 / TF060-AH-50-HF (0.8hp non-heated)
- E-6206: DC060-AH / DC060-AH-50-HF (0.8hp non-heated)

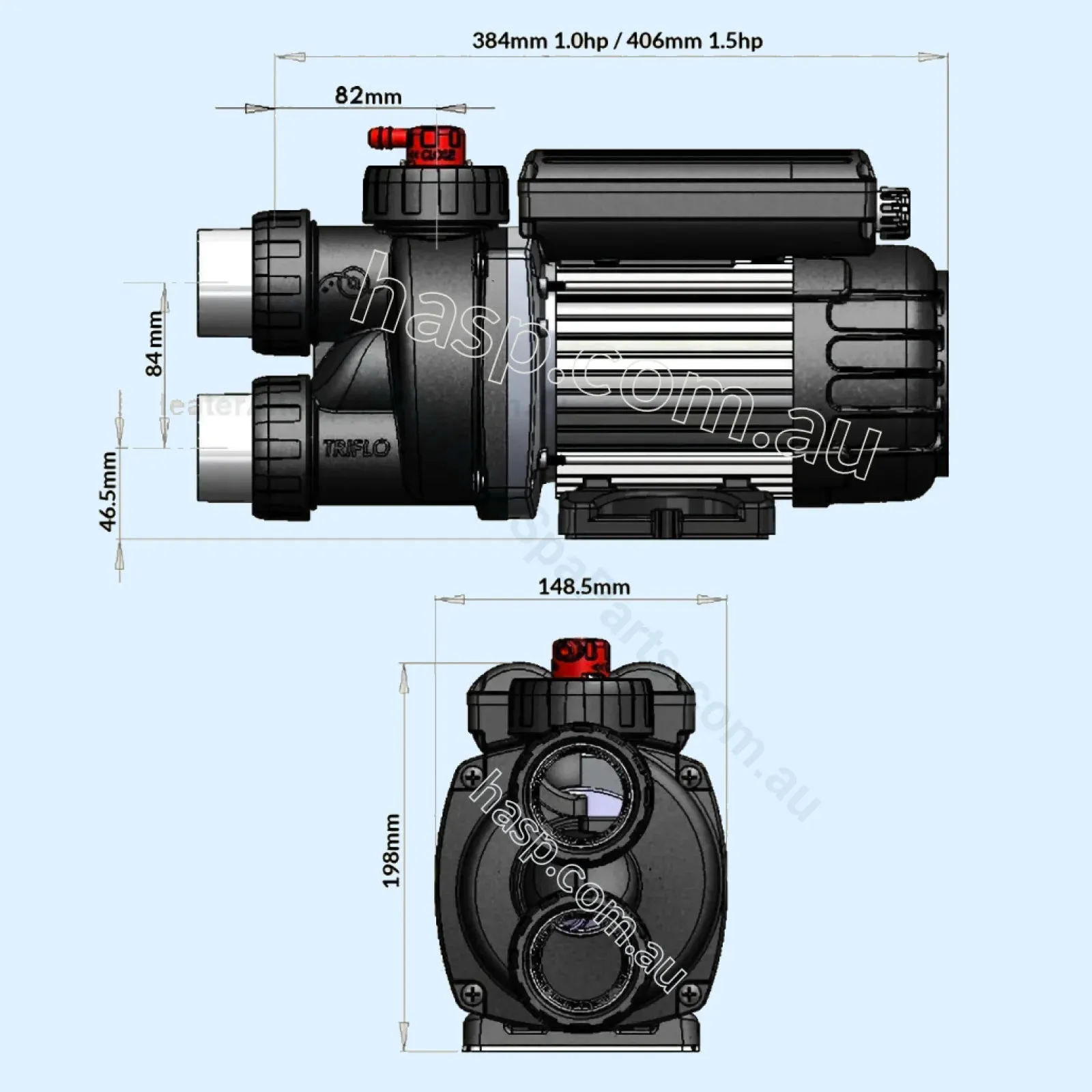

- Dimensions: L: 384mm | W: 148mm | H: 198mm | 10kg
- Warranty: 1 Year Domestic / 6 Month Commercial - Note: we often see these pumps last over 10 years!
Documentation:
MULTI PORTS: can be plumbed as a top or front discharge plump.
AIR BLEED: Air Bleed can be activated any time should air locking occur, the air bleed has an o'ring seal to ensure positive sealing once air has been expelled.
The TriFlo pump internal design allows the water to self drain so that there is no residue water left in the pump when the spa is emptied in accordance with Local Health Regulations.
TriFlo spa bath pumps are designed for spa bath operation only and should not be used in chemically treated water or permanently filled spas or any other purpose.
