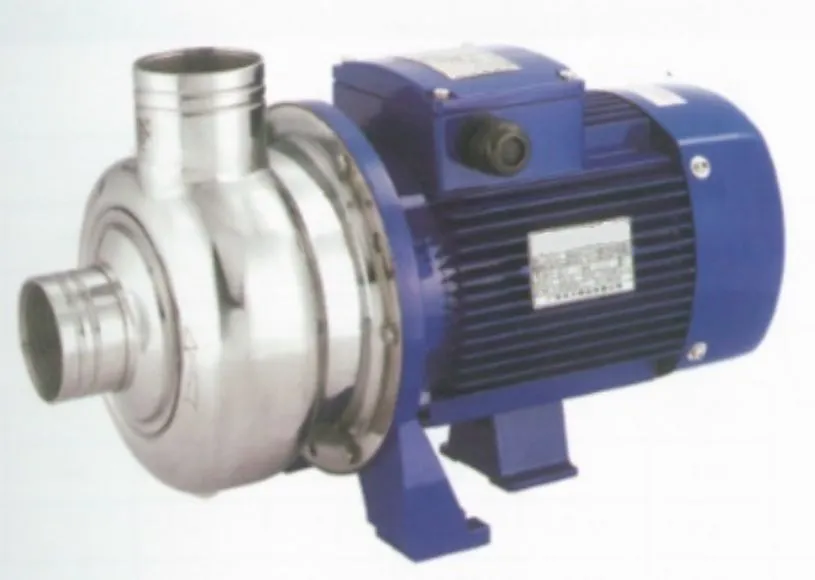

TECHNICAL DATA: 1) TEFC 2) Continious duty 3) Insulation Class : F 4) Protection class : IP55 5) Ambient temperature range : 15�C ~ 40�C 6) Wet part material : SS304 or SS316 7) With over load protector in Single phase motor
PERFORMANCE DATA: 1) Capacity = 1.2 m3/hr to 66 m3/hr 2)Head = 5 mtr to 17.5 mtr 3) Power = 0.37 Kw to 3 kw 4) Voltage = 220V , 380V 5) Frequency = 50 Hz 6) Phase = Single phase & Three phase 7)RPM = 2900r/min
